무인항공기
무인항공기 > 일반용 > UT-03

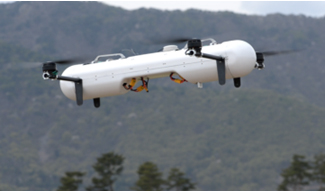

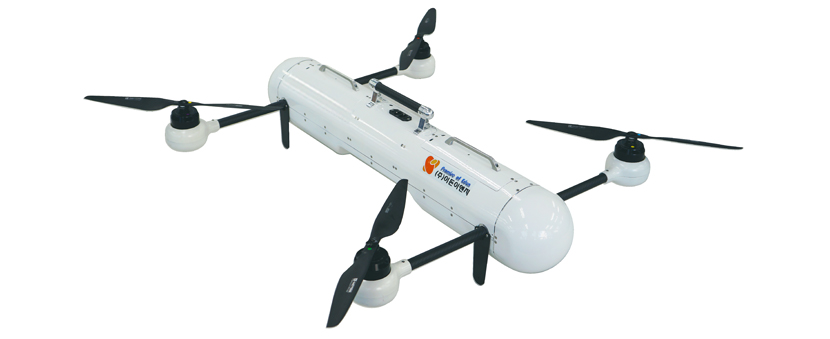

UT-03 (드론 관리 시스템)
이 제품은 PNU DRONE 컨소시엄 업체들의 노력으로 해상환경에 특화된 제품으로 개발되었습니다.
부산해양지방수산청의 요구사항과 한국항공우주연구원의 기술지원을 통해 만들어졌으며 과학기술정보통신부의 국가연구개발과제에
도움을 주었습니다.
Features
ㆍHaving front and rear pairs of tiltable motor-mount-shaft
ㆍWater drop resistant body
ㆍEO/IR or Night Vision (optional mounting)
ㆍCommercial mobile communication (LTE) based system
ㆍFull autonomous flight function
ㆍParachute, Buoyance (optional mounting)
ㆍWind tolerance : over 10m/s
Specifications
ㆍAircraft type : Quad-Tilt-Prop
ㆍMaximum Take Off Weight : 25kg
ㆍEndurance : 40min.
ㆍPayload : 2~3kg
ㆍOperating range : 20km
ㆍGCS : (optional)
Applications
ㆍSupport for maintenance operation of marine facility
ㆍMonitoring fishery resources
ㆍMarine Traffic & environmental safety monitoring
ㆍMonitering land/natural resources
